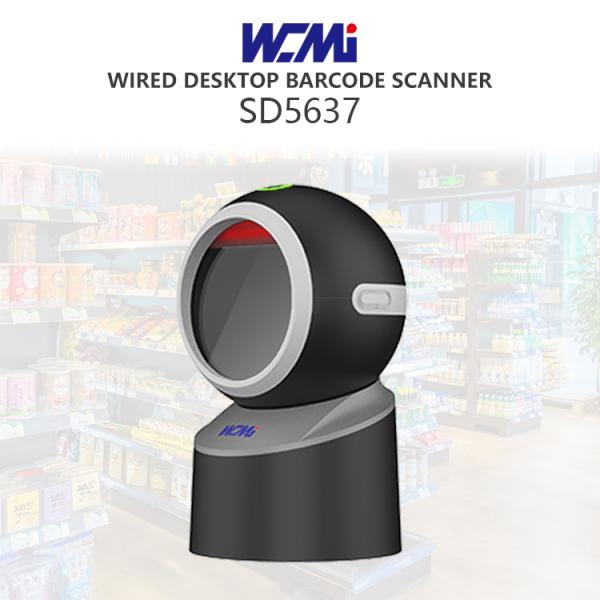

Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores

Product Categories
Tianjin Wavecreating Micro Intelligent Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores

private mold : NO

products status : Stock

type : Barcode Scanner

scan element type : CMOS

colour depth : 32 Bit

interface type : usb

max paper size : A4

optical resolution : 6 mil

Brand Name : WCMI

Place of Origin : Tianjin, China

warranty(year) : 15Months

after-sales service : Return and Replacement, Others, Repair, Free spare parts, Onsite Training and Inspection, Call Center and on-line Technical Support

color : Black

Product name : Barcode Scanner

Interface : USB

Scan Angle : Rotation 360,Pitch: 60°,Deflection: 60°

Light source : Red LED

Scan Mode : Induction mode

Resolution : 4mil/0.1mm(PCS90%

Certification : RoHS,FCC,CE

Sensor : 640 X 480 CMOS @ 100fps

Depth of Scan field : 5-15mil

Dimension : 150.32mm x 95.6mm x 88.88mm

Contact Now

Product Description

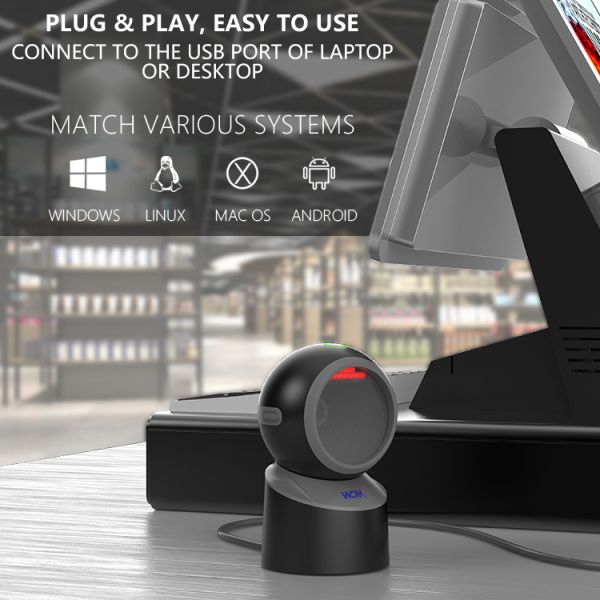

SD5637 omnidirectional barcode scanner is the perfect blend of affordability, performance and style. SD5637 adopts the 4th Generation I-SUBPIXEL Algorithm, which can easily read paper barcodes and screen barcodes at high speed. It adopts a new generation of lighting design with cool lighting prompt function. The SD5637 is a plug-and-play scanner, and installing it into existing checkout systems is easy. It can be widely used in supermarkets, restaurants, cinemas, pharmacies and other industries.
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Specification
Product Parameters






General
Type
Wire Desktop Barcode Scanner Platform
Product model
SD5637
Brand Name
WCMI
Products Status
Stock
Place of Origin
Tianjin,China
Private Model
Yes
Warranty(Year)
15 month
After-sales Service
Return and Replacement; Free spare parts
Certification
RoHS、FCC、CE
Color
Black
Language Supported
English/Customized
Scan Element Type
CMOS







Scan code
performance
Image (Pixels) Sensor
640 X 480 CMOS @ 100fps
Light Source
Red LED
View Angle
Horizontal 44°, Vertical 34°



Decoding capability
2d: QR 、PDF417、DataMatrix（ECC200）、Aztec、HANXIN code、Maxicode、Micro QR、Micro PDF417
1d: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar 、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、MSI
Plessey 、RSS-14、RSS-Expand、RSS-Limited、Standard 2 of 5、Code 16K、Plessey、ChinaPost、Code49

Depth of Field
Code39: 0~50mm （5mil）
EAN13: 0~130 mm （13mil）
CODE128: 0~180 mm （15mil）
Wechat Payment(6 inch):0-230mm(TBD)
Scan Angle
Rotation: 360°, Pitch: 60°, Deflection: 60°
Scan Mode
Induction mode
Precisions
1d ≥4mil / 2d ≥10mil
Symbol Contrast
≥15%



Physical
Parameters
Weight
<350g
Dimensions
150.32mm x 95.6mm x 88.88mm
Interface
USB

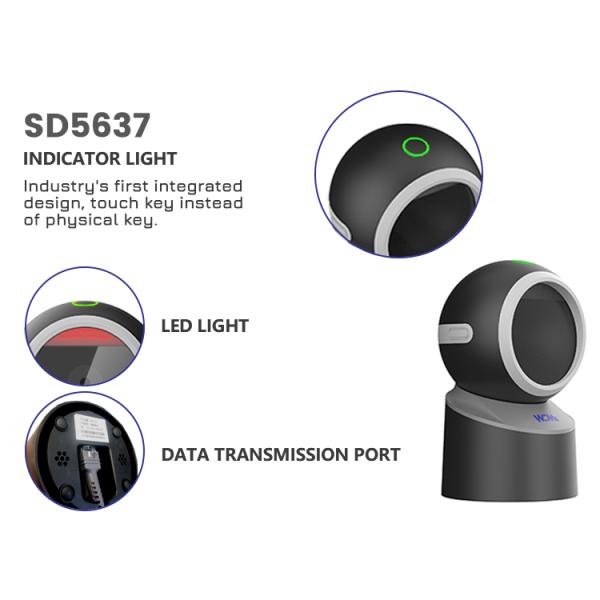

Prompt Mode
LED prompt and buzzer
Voltage
DC+5V ±5%
Line Length
1.5m
Current
400mA

Environmental
Parameter
Operating temperature
-20℃ ~ 60℃
Storage temperature
-40℃ ~ 70℃
Operating Humidity
5%RH~95%RH (Non-condensing)
Company Information
Tianjin Wavecreating Microelectronics Limited Company is one of the leading professional R&D manufacturers for barcode scanning products in China. It is located in Tianjin Economic and Technological Development Area and has a registered capital of 10 million yuan. The company continuously insists on defining products from the chip, taking customized chips, image recognition algorithms and customized services as our core competency.
The company has more than 60 employees, including 36 R&D staff, 97% of whom have a bachelor’s degree or above, 9 masters, and 2 doctors. Currently, it has obtained 7 invention patents, 4 utility model patents and 10 appearance patents
The company has passed I S O 9 0 0 1 and I S O 1 4 0 0 1 certifications, all of the products can meet RoSH, REACH, CE, and FCC certification requirements. It has a perfect customer response mechanism in 24 hours to provide you with first-class after-sales service. The company's main products: wired and wireless barcode scanner, omni-directional barcode scanner, desktop barcode scanner, access control products, wearable barcode scanning products, scanner engine, algorithm licenses,etc. It can provide you with related solutions and services from chips to finished products，improve the efficiency and quality of processes in retail, manufacturing, transportation and logistics, site security, healthcare and service industries.
We sincerely look forward to win-win cooperation with you!
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
QUALIFIED FACTORY
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Product packaging
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
Certification
Desktop Barcode Scanner: Hands-Free USB Wired 1D/2D for POS Systems, Supermarkets, and Bookstores
FAQ
\uD83C\uDD9A Is OEM or ODM available?
Yes. We are the factory directly. We can make it as your requirement.
\uD83C\uDD9A What’s the warranty policy for the barcode scanners?
We provide 2 year maintenance warranties. During warranty, free spare parts if necessary for replacement or new barcode scanners replacement in next order.
\uD83C\uDD9AWhy so competitive?
We have a professional R & D team and technical team and have a large domestic market. What's more, we have mature technology to save costs.
\uD83C\uDD9AHow to control the performance stability?
We take the flow line production in the whole processing. Every product will test 4 times at least before it is delivered.
\uD83C\uDD9AHow about the factory?
We have more than 200 workers with an advanced dust-free plant. We are approved the new high-tech enterprise by government. Many technical and design patents in different professional fields approved.
